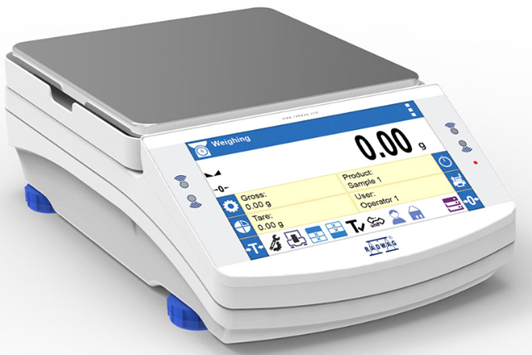

RADWAG PS X7 Precision Balance Series with 7-inch Graphic Color Touchscreen, Internal Calibration and multiple communication interfaces

PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu, and intuitive layout of information on the 7-inch graphic color touchscreen. An advantage of this series balances is Internal Automatic Calibration which relieves the user from having to carry out this complicated and precision demanding procedure manually. Two built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed by simply waving a hand across the sensor. PS X7 Precision Balances enable the user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PA X7 balance display gives access to information and operating results directly from the 7-inch graphic color touchscreen.

PS 7X Precision Balances are equipped with multiple communication interfaces: 2x RS232, USB-A, USB-B, Ethernet and Wi-Fi® The information system is based on 9 databases which allow several users to work with databases storing several products. The registered weighing results can be subject to further analysis.

PS X7 Precision Balances feature ALIBI memory which guarantees safety as it automatically records measurements, and allows data preview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighments.

USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its databases.

Compliance to 21 CFR part 11 available as option.

RADWAG PS 10100.X7.M, Capacity 10100 g x 0.01 g Readability, Automatic Internal Calibration, 7-inch Color Graphic Touchscreen Display, Precision Balance

FREE GROUND SHIPPING - Continental US Only

Unit of Measure

Specifications

Model

N/A PS 10100.X7.M

Note for Model

N/A

X7.M Precision Balances based on Radwag MonoBLOCK® technology

MFR

N/A RADWAG

Capacity

N/A 10,100 g

Readability (d)

N/A 0.01 g

Tare Range

N/A -10100 g

Standard 5 Percent Maximum Repeatability

N/A 5 mg

Maximum Standard Repeatability

N/A 12 mg

Minimum Standard Weight (USP)

N/A 10 g

Minimum Weight (U=1%, k=2%)

N/A 1 g

Linearity (±)

N/A 20 mg

Stabilization Time

N/A 1.5 sec

21 CFR part 11 Compliant

N/A Available as option

Calibration Adjustment

N/A Internal (Automatic) + External

Leveling System

N/A Manual

Display

N/A

7 in. Graphic Color Touchscreen

Weighing Pan Diameter

N/A 7.68 x 7.68 in195 x 195 mm

Device Dimensions (W x D x H)

N/A 8.08 x 13.11 x 4.41 in205.5 x 333 x 112 mm

Protection Class

N/A IP 43

Database Capacity

N/A 9

Touch Free Operation

N/A 2 - IR Sensors

Communication Interfaces

N/A 2X RS232 Ethernet USB-A USB-B Wi-Fi®

Power Supply

N/A Adapter: 100 - 240V AC

50/60 Hz 0.6A; 12V DC 1.2A

Balance: 10 - 15VDC 0.6A max

Power Consumption

N/A 4 W

Operating Temperature

N/A +10 to +40 ºC

Ambient Conditioning Monitoring (Option)

N/A THB P THB S THB W THBR 2.0 System THBR BOX

Relative Humidity

N/A 40 to 80 %

Net Weight

N/A 12.56 lb5.7 kg

Shipping Dimensions and Weight

Shipping Dimensions

N/A 18.74 x 15 x 13.62 in476 x 381 x 346 mm

Ship Weight

N/A 12.11 lb5.5 kg

Features

Features

N/A
  • 2 IR Sensors, some hands-free operation
  • 3-Way glass draft shield (0.001 g models only)
  • 4 - Adjustable leveling feet
  • 7 in Graphic Color Touchscreen
  • 9 Databases that enable the operation of many users with numerous products, all stored data can be analyzed
    • Ambient Conditions (10,000 records)
    • ALIIBI memory (max (512,000 records)
    • Customers (max 1,000 customers)
    • Formulations (100 formulations)
    • Formulation reports (500 reports)
    • Packaging (100 packaging types)
    • Products (5,000 products)
    • Weighings (50,000 records)
    • Users (100 users)
  • Ambient Conditions Monitoring (option)
  • Anti-static pane coating
  • Calibration/Adjustment - Internal (automatic) + External
  • Communications: RS232, 2x USB-A (interchangeable), USB-B, Wi-Fi, Ethernet,
  • Compliance to 21 CFR part 11 (option)
  • Customization of display using widgets
  • Manual Doors (1 mg models only)
  • OIML Class - II (Not available on model PS 10100X.7.M)
  • Protection - IP43
  • SMARTLab system ensures support and supervisor over mass measurement process, reduces human error factor.
  • Stainless steel weighing pan
  • Tool-free disassembly of the chamber
  • 2 Year Limited Warranty

Applications

Applications

N/A
  • ALIBI Memory
  • Animal Weighing
  • Ambient Conditions (option)
  • Autotest
  • Check weighing
  • Density Determination
  • Dosing
  • Formulation
  • GLP Procedures
  • Newton Unit of Measurement
  • Mass for Titrator
  • Parts Counting
  • Peak Hold
  • Percent Weighing
  • Statistics
  • Statistical Quality Control
  • Underpan Weighing (requires optional hook)

Notes

Notes

N/A

Ship point FL 33179
