RADWAG PS 5Y ELLIPSIS Series Precision Balances, seven 1 mg models with 3-way glass draft shield, six, 0.01 g top loader models with RADWAG MonoBLOCK® technology. The PS 5Y series feature automatic internal calibration, semi-automatic leveling, and optional 21 CFR part compliant for use in the pharmaceutical industry. As a standalone unit it fully meets the requirements with full Data Security, Electronic Signatures, Validations, Electronic Records, and Audit Trails.

The Radwag PS 5Y series offers a 10-inch Graphic customizable Touchscreen Display, 2-IR sensors for some hands-free operations, 7 data bases, communication interfaces 2xUSB-A, USB-C, HDMI, Ethernet, Wi-Fi® and Hotspot as standard.

Constructed with high quality materials and advanced manufacturing techniques the Radwag Ellipsis PS 5Y Series Precision Balances deliver exceptional accuracy and durability over extended periods of use. Whether your conducting research in the pharmaceutical, biotechnology, or other scientific fields the Ellipsis PS 5Y balance is the ideal solution to your weighing needs.

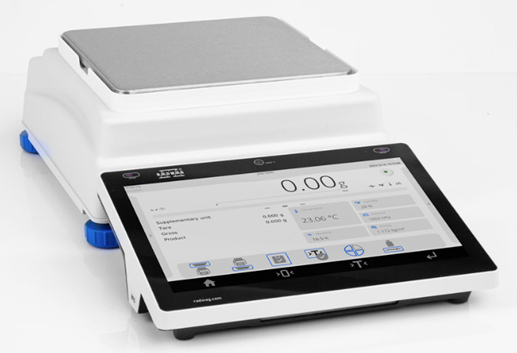

RADWAG Ellipsis PS 8100.5Y.M, 8100 g Capacity x 0.01 g Readability, Internal Calibration, Semi-automatic Leveling, 10-inch Graphic Color Display, Toploading Precision Balance

FREE GROUND SHIPPING - Continental US Only

Unit of Measure

Specifications

MFR

 N/A RADWAG

Model

 N/A PM 8100.5Y.M

Note for Model

 N/A

Precision balances based on Radwag MonoBLOCK® technology

Capacity

 N/A 8,100 g

Readability (d)

 N/A 0.01 g

Minimum Load

 N/A 500 mg

Verification Scale Interval [e]

 N/A 100 mg

Tare Range

 N/A -8100 g

Standard 5 Percent Maximum Repeatability

 N/A 5 mg

Maximum Standard Repeatability

 N/A 10 mg

Minimum Standard Weight (USP)

 N/A 10 g

Minimum Weight (U=1%, k=2%)

 N/A 1 g

Linearity (±)

 N/A 20 mg

Stabilization Time

 N/A 1.5 sec

Calibration Adjustment

 N/A Internal (Automatic)

OIML Class

 N/A II

Doors

 N/A No

Leveling System

 N/A Sem-Automatic - LevelSENSING

Display

 N/A

10 in. Touchscreen

Touch-free operation

 N/A 2 IR Sensors

Protection Class

 N/A IP 43

Pan Diameter

 N/A 195 x 195 mm

Net Weight

 N/A 15.9 lb7.2 kg

Communication Interfaces

 N/A 2x USB-A Ethernet HDMI Hotspot USB-C Wi-Fi®

Power Supply

 N/A AC adapter 100 - 240V AC

50/60 Hz 0.6A; 12V DC 1.2A

Balance: 12 - 15V DC 0.8A max

Power Consumption

 N/A 4 W

Relative Humidity

 N/A 40 to 80 %

Shipping Dimensions and Weight

Shipping Dimensions

 N/A 28.4 x 14.6 x 10.79 in720 x 370 x 274 mm

Shipping Weight

 N/A 20.5 Pound9.3 Kilogram

Features

Features

 N/A
  • 21 CFR Part 11 compliant with full data security, electronic signatures, validations and electronic records. (option)
  • 7 Data Bases
  • Calibration Adjustment, Internal Automatic Time and Temperature
  • Ambient light, an innovative way for the balance to communicate with the operator
  • Display, bigger 10 in. screen, means more information in one place
  • Digital Weight Auditor, ensures your balance is ready for use and alerts operator for a balance inspection
  • Manual Doors ( 1 mg models only)
  • Handy Library, where a series of measurements or report is ready for digital signatures, 21 CFR Part 11
  • Hotspot, use the balance or any device connected to it, this can be a smart phone tablet or computer.
  • Interfaces, 2x USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
  • IR Proximity Sensors, two sensors can be setup to provide some routine functions hands-free
  • Live Note, add a voice memo or a text note to a measurement procedure report
  • Semi-automatic leveling - LevelSENSING
  • Modbus TCP/IP communication protocol makes the devices of this series, friendly for automation integrators
  • Smart Min Weight, balance displays the value of the weight you want to weigh is below the minimum threshold
  • Two Point Adjustment - Adjacency, which takes place at two measurement points instead of one.
  • USP Compliant, meets USP Guidelines for Weighing in the pharmaceutical industry
  • User Verification - Password, RFID Reader, Fingerprint Reader, Facial Recognition Mechanism, or any combination. (RFID ISO/IEC 14443 Type A, 13.56 MHz)
  • Voice Commands: Tare, Zero, Print/Save, Open Automatic Door/Close Close Door (Automatic Door Models Only)
  • Widgets, prepared to display what you need most any given moment
  • Warranty - 3 Year Limited Warranty

Functions

Functions

 N/A
  • Air Density Correction
  • ALIBI Memory
  • Ambient Conditions Monitoring (option)
  • Animal Weighing / Dynamic Weighing
  • Autotest
  • Checkweighing
  • Density Determination
  • Differential Weighing
  • Dosing
  • Formulation
  • GLP Procedures
  • Newton unit of measure
  • Package Good Control
  • Parts Counting
  • Peak Hold
  • Percent Weighing
  • Pipette Calibration
  • Statistical Quality Control
  • Statistics
  • Under-pan weighing (requires optional hook)

Data Bases 7

Data Bases 7

 N/A
  • Operators
  • Products
  • Customers
  • Formulations
  • Pipettes
  • Packaging
  • Warehouses
  • Manage the database

Special Features

Special Features

 N/A
  • 2 - IR Sensors
  • 7 - Data bases
  • Wi-Fi®
  • Semi-automatic Leveling
  • Calibration - Internal (automatic)
  • Interfaces - 2xUSB-A, USB-C, HDMI, Hotspot, Ethernet, Wi-Fi®

Notes

Notes

 N/A

Ship point FL 33179
